CNC HUB 3 BLADE "Cruiser" VARIABLE PITCH IN FLIGHT

CNC HUB 3 BLADE "Cruiser" VARIABLE PITCH IN FLIGHT

Three-blade propeller with variable pitch in flight composed of carbon-fiber blades with 304 stainless steel armor directly printed in one piece, made of Autoclaves, the most advanced technique for laminating composite materials.

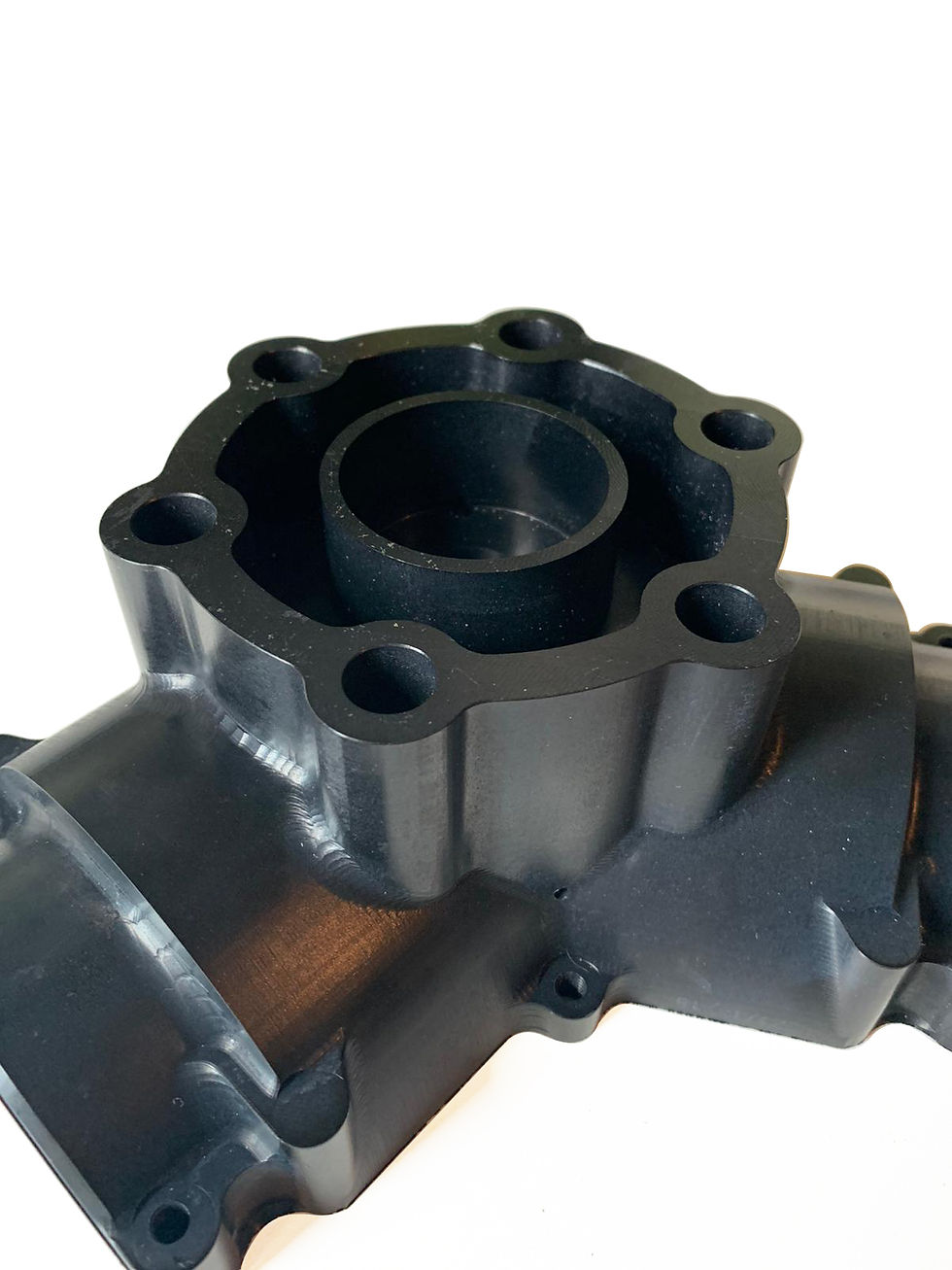

Ergal hub worked with CNC machines for the maximun strenght , anodized finish for greater resistance to external agents such as corrosion.

The rotation of the blades is completely on bearings.

The transmission of the movement iscontrolled by an electric motor.

The propeller is equipped with different safety systems to prevent extra rotations of the blade pitch, including:

-Micro end of stroke, which intervene at minimum and maximum pitch set WITHOUT any type of mechanical effort on the part of the components.

-Fine stroke Mechanics that prevent an extra rotation both at minimum and maximum pitch in the event of micro-electric fault.

-Instrument that in the case identifies an absorption greater than that allowed, it removes current to the electric motor.

Technical specifications:



Diameter:  1630 - 1720 - 1800mm

Weight: 9 Kg



This type of blade allows an excellent cruising speed but a slightly lower traction in the take-off phase compared to the "Flash" bladeSuitable for aircraft with high cruising speed



Motors Compatibility:

-Rotax 912 (80hp - 100hp - 120hp - 140hp )

-Rotax 914 (115hp)

-Rotax 915 (135Hp)

  • TEST, GALLERY, VIDEO

    Guarda i nostri test, video e la gallery di questo prodotto su:

    Vidor Asso V - Rotax 912 80Hp

    Alpi Aviation Pioneer 300 - Rotax 912 100Hp

    ICP Savannah - Rotax 912 100Hp

€3,600.00Prezzo
